Seitech Storage Racks
Stationary and Roll a Round Storage Racks for  Sailboats,
Row Boats, Pedal and Paddle Boats



Racks can be configured from Two to Two hundred or more


|Multiple Dock unit Rack
Multiple Sailboat Storage Racks Shown on Dock
Note:  Customer installed Large PVC pipes in lower rack
 space for spar storage


Seitech Storage Racks are made of aluminum, engineered composite joints and stainless steel fasteners.  They are available as stationary or with rolling casters.  Ideal for storage or display units.  Racks ship UPS.  Three Sailboat Rack



Yacht Club Racks on Ground
Racks can be installed on Grass or Ground or Gravel
Note:  Bottom clearance of 12" can be used for spar storage



Yacht Club Rack Storage
Racks can be placed side by side for multiple installations
Optional clamps are available to bolt together racks.



Seitech Box Rack
Seitech Box Style Rack for Small Sailboats
(actual rack design varies with model and number of tiers)





 Optional Rack pads are 48" long
 Foam with Acrylic Cover.

Use to protect hulls, alternatively use carpet or other materials  to cover rack rails


Loading Notes:   Adults can easily leverage boats onto racks.  For younger users, wooden bunks can be installed to allow boats to slide full length onto racks.  Optional drop in brackets for wood bunks are available,  or customer may secure bunks by drilling holes to allow screw down points.  Wood bunks are not supplied, as it is more economical to obtain them from local lumber yards.  Bunks can be covered with carpet.    Aluminum slide rails can be ordered from the factory at additional cost.






Boat Rack With Optional Slide Bunks Installed



Adding Four of the Optional T-Brackets per boat space allows you to install wooden slide bunks without any drilling.   Brackets clip onto rails and slot fits a 2 X 4 or 2 X 2 on edge.  Aluminum slide rails are also available* Bunk Bracket for slide on bunks

* Users  can also install 2x4's flat side down across the bars
and just bolt them to the rails instead of using the T-Brackets



OPTIONAL CASTERS

Casters are industrial grade and are designed for heavy duty usage.  Allows easy movement of racks, even when loaded.  Works well for Retail Store Displays, Docks  or Home Garages.

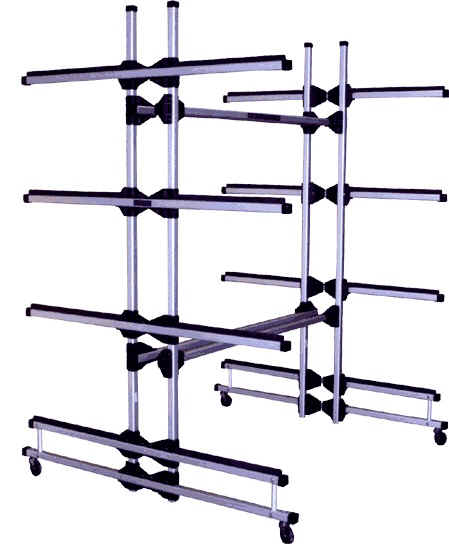

Double Tree  rack for Optimist, Sabot and other small sailboats
Double Tree Style Sailboat racks are available for  Optimist, Sabot
and other small sailboats.  Shown with optional rolling casters.



Racks are weather resistant and can be used indoors or outdoors

PRICES



Sailboat Storage Racks
Also For RowBoats ,
 Pedal & Paddle Boats

All Sailboat Racks have unpadded rails
optional rail pads are available

Price

Shipping
 48 USA

9401   Box - 2 - A* size Sailboats - Stationary

$  495.00 + 69.95  S&H

9451   Box - 2 - A* size Sailboats - with rolling casters

$  675.00 + 69.95 S&H

9402   Box - 3 - A* size Sailboats - Stationary

$  725.00 + 79.95 S&H

9452   Box - 3 - A* size Sailboats - with rolling casters

$  825.00 + 79.95 S&H
9403   Box - 4 - A* size Sailboats - Stationary $  875.00 + 89.95 S&H

9453   Box - 4 - A* size Sailboats - with rolling casters

$  995.00 + 89.95 S&H
9404    Box - 2 - B* size Sailboats - Stationary $  495.00 + 79.95 S&H
9454    Box - 2 - B* size Sailboats - with rolling casters $  695.00 + 79.95 S&H
9405    Box - 3 - B* size Sailboats - Stationary $  775.00 + 89.95 S&H
9455   Box - 3 - B* size Sailboats - with rolling casters $  855.00 + 99.95 S&H
9431   Box - 6 - Optimist size Sailboats - Stationary $  1250.00 + 99.95 S&H
9321   Double Tree - Optimist size boats - Stationary #  $ 1475.00 + 99.95 S&H
Other Optimist racks available - Call
Large Custom Rack Systems - Call

* A size sailboats include - Laser, Sunfish, Opti or  up to 58" beam

* B size sailboats include - Laser 2, Vanguard 15, 420, up to 68" beam

#  Double Tree rack allows side loading for Optimist, Sabot and others

These Racks can be Easily  Modified to Accommodate Pedal Boats, Paddle Boats, and Row Boats



Click Here to See All Seitech Sailboat Rack Dimensions





Seitech-Rack-menu
Trailer Racks to Convert your Existing Trailer to a Multiboat Trailer

Seitech Rack-menu
Storage Racks for Canoes and Kayaks
