Trailex Double Sided Storage Racks For Canoes, Kayaks & SUP Paddle Boards
Stationary, and Roll-Around Storage Racks for Canoes, Kayaks, SUP, Paddle Boards Surfboards



Trailex Logo

Trailex Ultra-Light Aluminum Racks and Trailer Kits come with a One Year Limited Warranty.  Almost 50% lighter than steel racks and they Never Rust

All Aluminum, All Bolted Construction, All Adjustable



FREE SHIPPING ON TRAILEX STORAGE RACKS*
*within the 48 USA





Double Tree     6 Canoe/Kayak is 1063-.00 + FREE Shipping (48 USA)

Double Tree     8 Canoe/Kayak is 1271.00 + FREE Shipping (48 USA)

Scroll Down the Page  for Details ,  Option's Pricing





These  Style Racks are fully Adjustable to Customize Bay Spacing
 Easy to Assemble -- they are shipped via Fedex in a dismantled state.



DOUBLE  SIDE RACKS

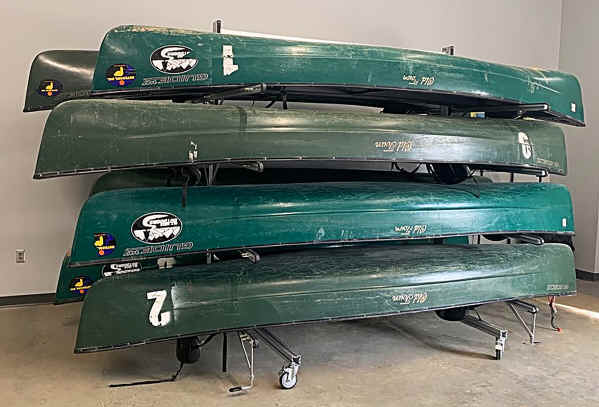

Trailex Model TR-801 Rack with Rolling Caster Option
(canoe, kayaks not included)

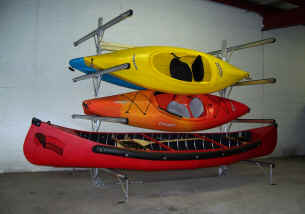

Trailex Double Tree Stationary Rack

TR-801 Stationary Rack  is supported by 4 Outrigger Feet which can also be used as anchor brackets to bolt down to a floor, dock or concrete pads.

Stationary Rack Foot
Sliding Web Clip
on Each Arm






Trailex Model TR-801 Rack with Rolling Caster Option
Vinyl Padding is Standard on All Crossbars
The Rack can Accommodate Eight Canoes or Sixteen Kayaks, if Put on Edge




TR-801   DIMENSIONS

 Vertical Spacing is 22" (adjustable)

 Height  = 90" ,     98"with Casters Width =  84" Length  = 89"

Weight Capacity is 150 lbs per Bay   1100 lbs Total

CLICK HERE to view dimensional drawings



TR-601   DIMENSIONS

 Vertical Spacing is 22" (adjustable)

 Height  = 67" ,     75"with Casters Width =  84" Length  = 89"

Weight Capacity is 150 lbs per Bay   900  lbs Total

CLICK HERE to view dimensional drawings





 Locking Swivel Casters
have Large  5" Wheels

Racks  with  Casters add
 Two (2)  84"
Cross braces



FREE SHIPPING ON TRAILEX STORAGE RACKS*
*within the 48 USA



PRICES



Canoe Kayak & SUP
 Double  Sided
Storage Racks


Price

Shipping
 48 USA



DOUBLE TREE  RACKS


TR-601   Double Tree - 6 Canoes  or Multi Kayaks Rack - Stationary  ( See Additional Option Features)

 1063.00

+ FREE S&H
TR-601-CR Double Tree - 6 Canoes  or Multi Kayaks Rack - With Rolling Casters   1735.00 + FREE S&H
TR-801   Double Tree - 8 Canoes  or Multi Kayaks Rack - Stationary  ( See Additional Option Features)

 1271.00

+ FREE S&H
TR-801-CR Double Tree - 8 Canoes  or Multi Kayaks Rack - With Rolling Casters   1943.00 + FREE S&H

*  All Racks can Adjust to 24" Spacing







 Optional Extra Equipment


FWSC Package of Four (4) Extra Web Strap Clips ( For Attaching Strap End Hooks)    29.95*
AB-4 Anchor Brackets (Set of 4) note 1    29.95*

*Accessories Qualify for Free Shipping with Purchase of Storage Rack



NOTE 1 - Anchor Bracket Set provides 4 L-Brackets that attach to rack legs.  Allows installer to bolt down the rack to floors, docks, or concrete pads. Order one set of AB-4 for each end.   They can be used for anchoring the ends of the center floor beam on the  TR-801 Racks. Order two AB-4 for each TR-801 Rack.



Trailew Web strap Clip Option
FWSC Option

Trailew Web strap Clip Option Set of Four Clips

Optional Tie Down points for Web Straps or Bungee Cords - Use to  add extra tie down points  to secure boat. Easily adjusts to any position by sliding.



FWSC Option includes Four Sliding Square Eyebolts.  These can be installed on any side of a  member on the unit  that has a slot and then locked in place by tightening the nuts.



NOTE  Some Racks come with  Multiple Web Strap Clips  already included -Please See the the following Specifications for the exact number of clips provided - if any.
TR-801  Double Tree Rack comes with 24 Web strap Clips  Included Standard.
TR-601  Double Tree Rack comes with 18 Web strap Clips  Included Standard.



Using AB-4 Bracket Set on TR-601 and TR-801 Tree Racks



Use one set of AB-4 Brackets at each end of the rack beam

 Attach with your Choice of Fasteners depending on surface

   Legs can also be bolted to the surface

   For Different Mounting Surfaces CLICK HERE to see the Storage Rack Anchor Page



Using AB-4 Bracket Set on other Style Racks

Trailex Rack for Canoe or Kayak Storage - Anchor Bracket Detail

AB-4  is a Set of Four Anchor Brackets that are Aluminum and come with T Bolts and Nuts for easy installation without drilling.  This allows you to bolt the Rack Down to any surface - Such as a Dock, Floor or Concrete Pad with your choice of  locally obtained anchor bolts  for your particular surface.

  For Different Mounting Surfaces CLICK HERE to see the Storage Rack Anchor Page





Add Extra Arm Sets  for More Levels

Shown is a TR-801  with Three Extra Arm Sets.  This holds  Fourteen  (14) SUP Paddle Boards.  Spacing is reduced to approximately 9"  Vertical spacing per Bay.

Contact Us for Assistance in Ordering








Assembly Instructions


Trailex Single Side Racks

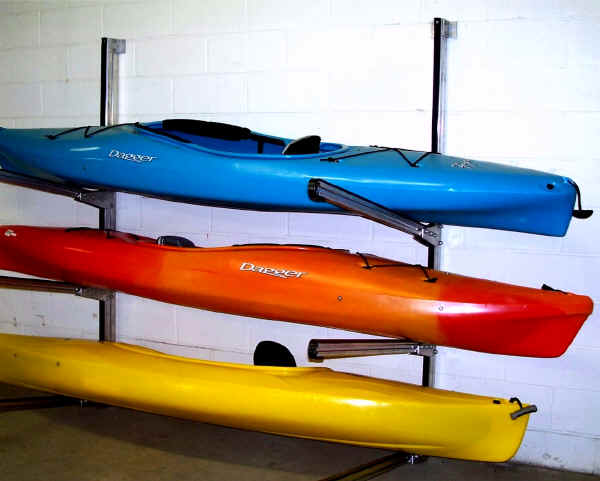

Trailex Wall Rack Canoes - Kayaks
Trailex Wall Racks







Click Here to See  Trailex Tree  Rack Dimensions





Trailex Storage Racks Can be Adapted to Fit on Your Existing Trailer

Typical Tree Rack on Trailex Trailer
Model TR-801 Eight Canoe Rack  installed on Trailex Trailer with Optional Kit
(canoes, trailer frame, box, and display stand not included)










Trailex T-bolt

Trailex T-Bolt with nut

  • Patented T-Bolt Construction

  • Fully Adjustable

  • Heads of bolts slide to any position.

  • Requires only one wrench to tighten

  • Lock nuts on all bolts

  • Strong & lightweight

Trailex Extrusion & T-Bolt





Trailex Rack Kit - Menu
 Racks to Convert
Trailer to a Canoe or Kayak Trailer

Seitech Rack Menu
Trailer Racks to Convert your Existing Trailer to a Sailboat Trailer

Seitech Rack-menu
More  Canoe  & Kayak Storage Racks



Sailboat Storage Racks - Menu
Storage Racks For Sailboats
