Trailex Storage Racks
For Canoes & Kayaks
Trailer Conversion Rack
Outline Dimensions

Stationary, Wall, and Roll-Around Storage Racks for
Canoes, Kayaks, Surfboards, and Sailboard
Converts Existing Trailers to Canoe or Kayak Trailer



trailex logo

Trailex Ultra-Light Aluminum Racks and Trailer Kits come with a One Year Limited Warranty.  Almost 50% lighter than steel racks and they Never Rust







Architects and Engineers - We can provide you with High Resolution Drawings - Contact Us

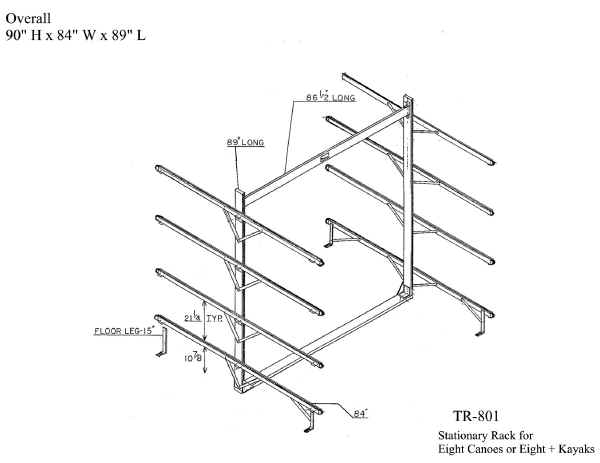

Trailex TR-801   8  (eight) Canoe or Kayak  Rack - Stationary

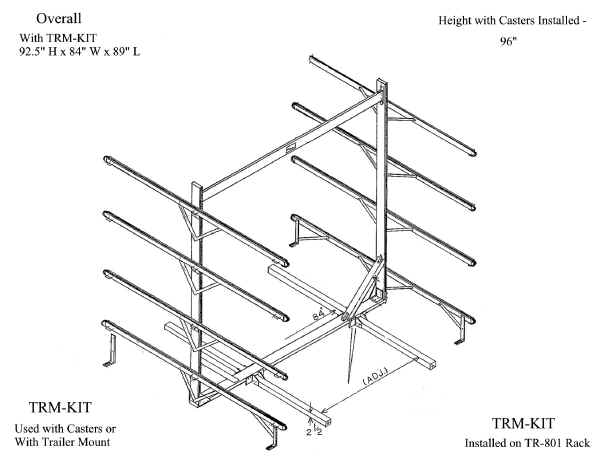

Trailex TR-801  Kit for Casters or Trailer Mount for  8  (eight) Canoe or Kayak  Rack
Casters mount in predrilled holes on lower 84" crossbars
Casters Increase Total Height to  98" When Used  on the TR-801 Rack

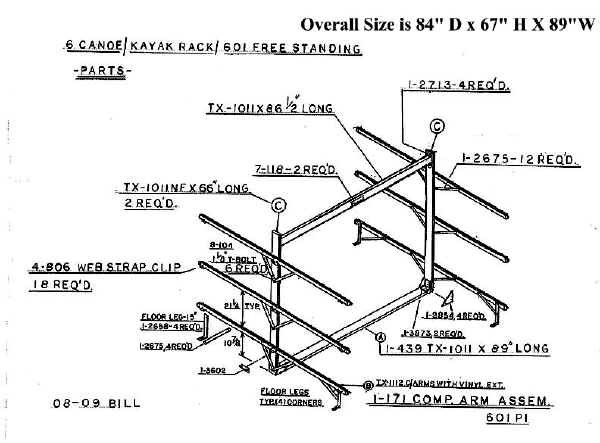

Trailex TR-601   6  (six) Canoe or Kayak  Rack - Stationary

Caster Kit uses the same options as the TRM-KIT as shown on the TR-801 Rack
Casters Increase Total  Height to  75"  When Used on the TR-6-01 Rack

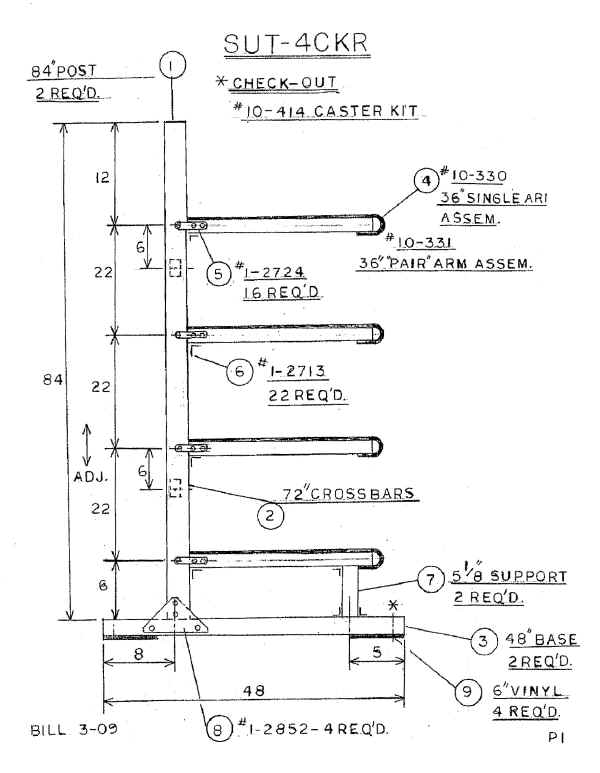

 railex Rack Outline  SUT-4CKR for Four Canoes ofr Kayaks
Trailex SUT-4CKR  Rack for    4  (four) Canoes or Kayaks - Side Loading - stationary
Rack Overall is 86" High.   Adding the Caster Kit increases Height to 94".
Arms are spaced 72" Apart.  Overall Width is 76"

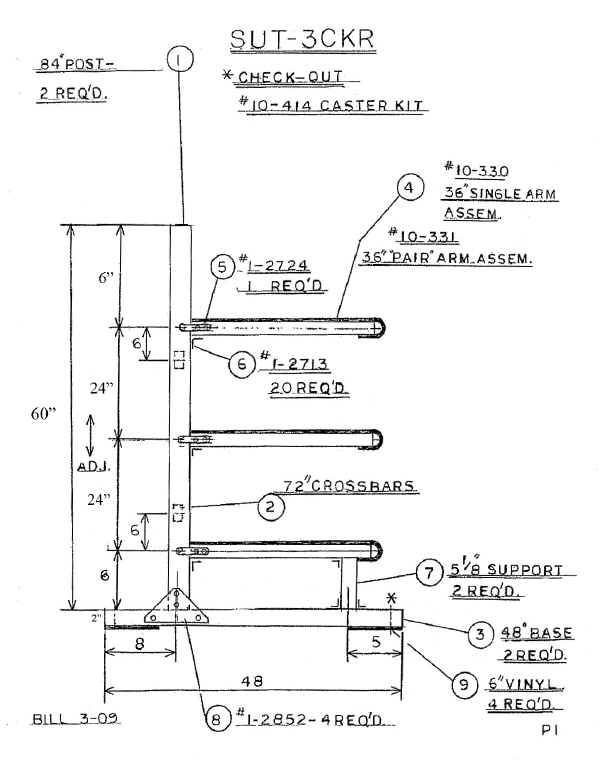

  Trailex Rack Outline  SUT-3CKR Three Canoe or Kayak Rack
Trailex SUT-3CKR  Rack for    3  (three)  Canoes or Kayaks - Side Loading - stationary
Rack Overall is 62" High.   Adding the Caster Kit increases Height to 70".
Arms are spaced 72" Apart.  Overall Width is 76"

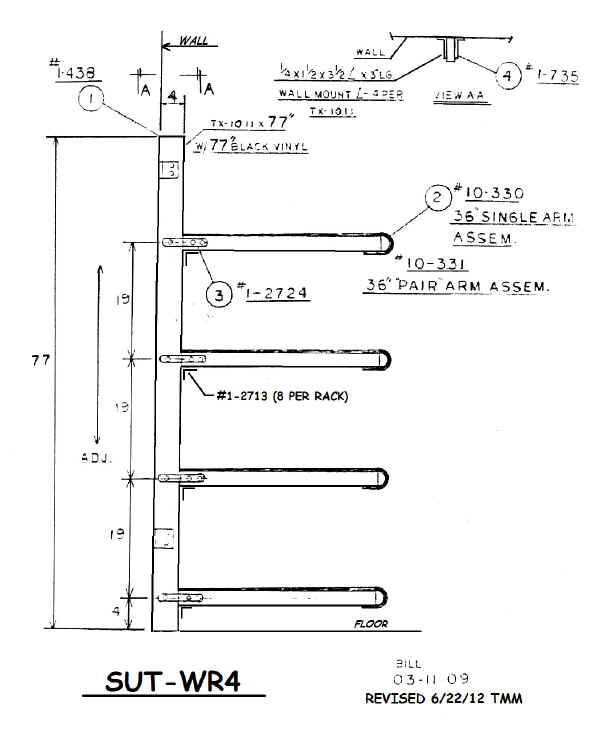

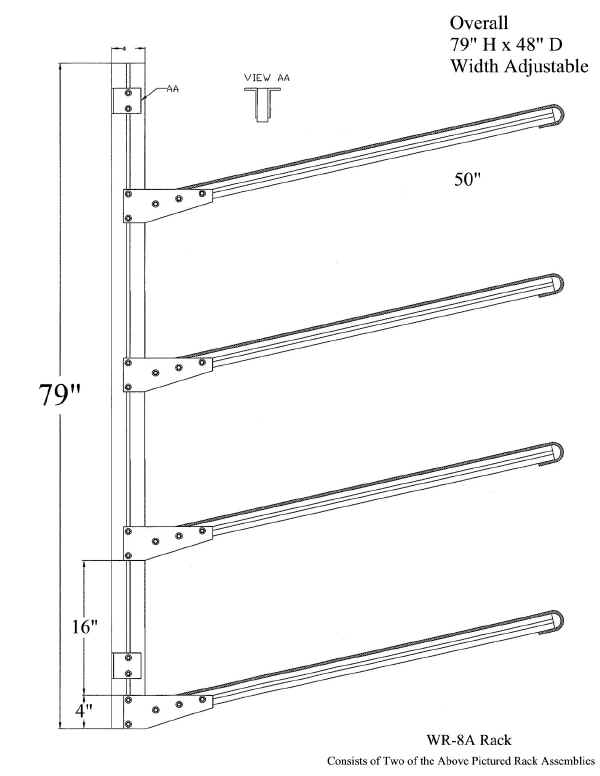

Trailex WR4  Wall Rack Outline Drawing
Trailex SUT-WR-4   Wall Mount  Rack for   4  (four)  Canoes or Kayaks
 Arm Spacing is completely adjustable *

*  All Wall Racks can Adjust to 24" Spacing



Trailex SYT-WR4 Wall Rack for Canoe3s or Kayaks

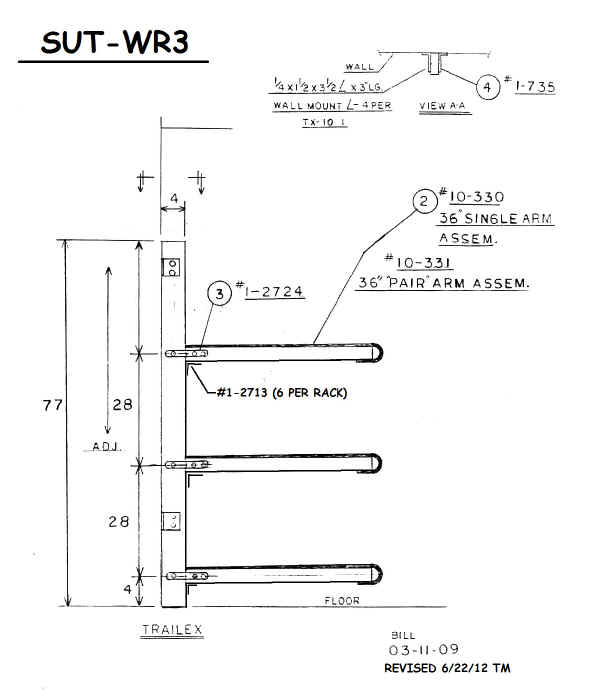

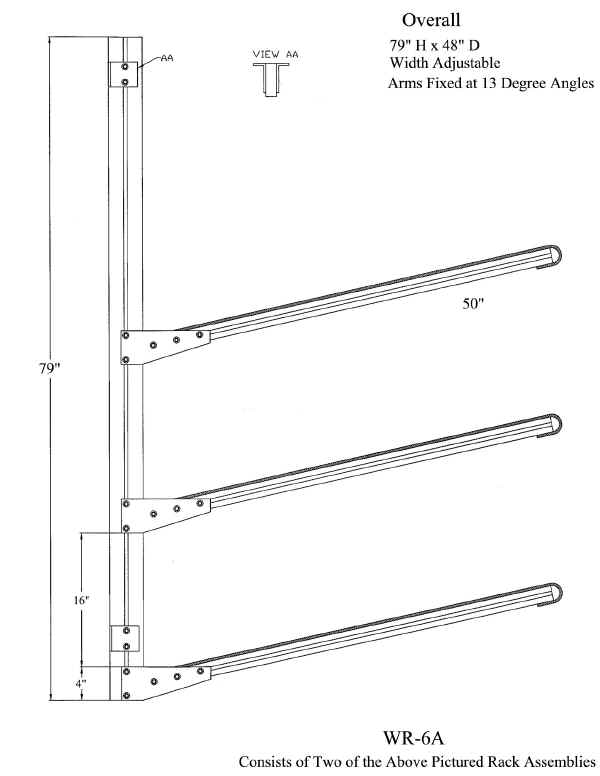

Trailex SUT-WR-3   Wall Mount  Rack for   3  (three)  Canoes or Kayaks
 Arm Spacing is completely adjustable *

*  All Wall Racks can Adjust to 24" Spacing



All Of The Trailex Racks Can Be Easily Resized.  Using A Simple Hacksaw, You Can Cut Down The Size Of Any Member, To Make The Rack Smaller.  The Unique T-Bolt Construction Allows You To Slide The Parts To Any Spacing Or Position.

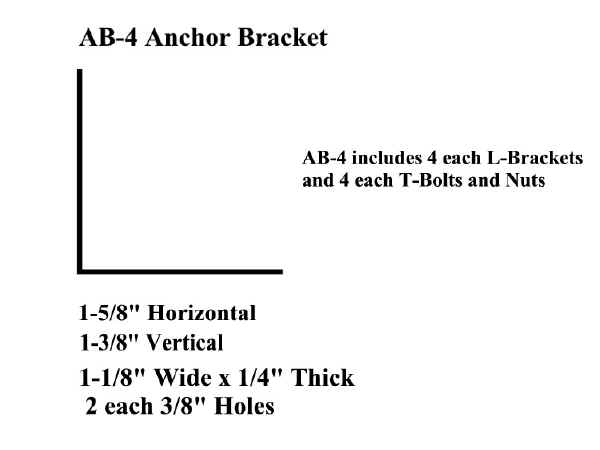

Tailex Rack Bolt down Brackets
Anchor Brackets Attach to the Double Tree and Single Tree  Racks  without any Drilling.
 Use these Aluminum L Brackets to secure racks to floors, docks or concrete pads




AB-4 Bracket Attachment   T-Bolt Attachment













Trailex T-bolt

Trailex T-Bolt with nut

  • Patented T-Bolt Construction

  • Fully Adjustable

  • Heads of bolts slide to any position.

  • Requires only one wrench to tighten

  • Lock nuts on all bolts

  • Strong & lightweight

Trailex Extrusion & T-Bolt
