CastleCraft Sailboat Storage Racks
CastleCraft Seitech & Dynamic Stationary and Roll a Round Storage Racks
 for  Sailboats, SUP Stand Up Paddle Boards, Row Boats, Pedal and Paddle Boats



Racks can be configured from Two to Two hundred or more



 Boat Storage Rack for 2 Boats   is 704.00  + FREE Shipping  (48 USA)

Scroll Down the Page  for Other Sizes , and Pricing





|Multiple Dock unit Rack
Multiple Sailboat Storage Racks Shown on Dock
Note:  Customer installed Large PVC pipes in lower rack
 space for spar storage


Storage Racks are made of aluminum, engineered composite joints and stainless steel fasteners.  They are available as stationary or with rolling casters.  Ideal for storage or display units.  Racks ship UPS.  Three Sailboat Rack

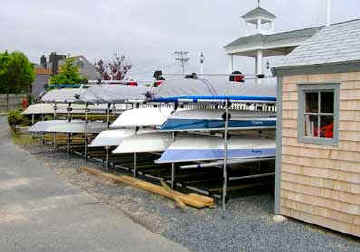

Yacht Club Racks on Ground
Racks can be installed on Grass or Ground or Gravel
Note:  Bottom clearance of 12" can be used for spar storage



Yacht Club Rack Storage
Racks can be placed side by side for multiple installations
Optional clamps are available to bolt together racks.

 -

3 Boat box Rack Dynamic, Seietech-

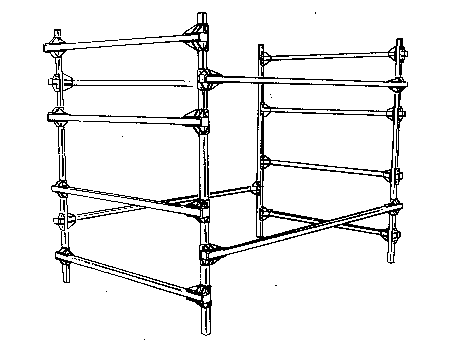

 Box Style Rack for Small Sailboats
(actual rack design varies with model and number of tiers)

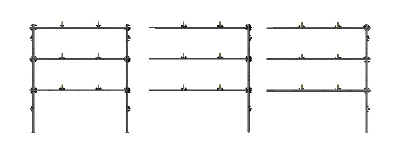

Seitech Extension Racks

Extension Racks are available to "Daisy Chain" Racks together.  This lowers the cost per rack significantly, and allows you to Build Rack Systems from Two Wide to Literally Hundreds Wide.  Start Small and add Racks as you Grow.  Contact us for Pricing





Optional Rack pads are 24" long - Sets come in Pairs Order 2 Sets Per Boat (Front & Rear) -

Use to protect hulls, alternatively use carpet or other materials  to cover rack rails


Loading Notes:   Adults can easily leverage boats onto racks.  For younger users, wooden bunks can be installed to allow boats to slide full length onto racks.  Optional drop in brackets for wood bunks are available,  or customer may secure bunks by drilling holes to allow screw down points.  Wood bunks are not supplied, as it is more economical to obtain them from local lumber yards.  Bunks can be covered with carpet.    Aluminum slide rails can be ordered from the factory at additional cost.

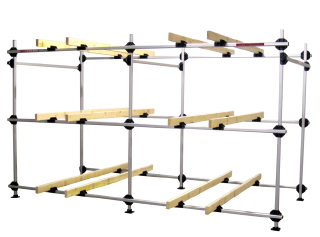

Boat Rack With Optional Slide Bunks and Optional Brackets Installed

Use Slide Bunks for:
A.  Heavier Boats or Paddle Boats for Easier Loading
B.  For Assisting Youths to self store their Own Boats

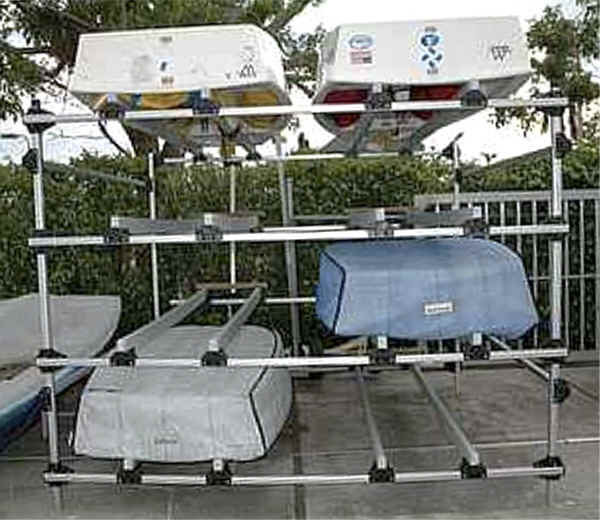

 Sailboat Storage Racks are best equipped with slide bunks for
 Optimist (Opti),  Sabot, El Toro and other small sailboats.



Adding Four of the Optional T-Brackets per boat space allows you to install wooden slide bunks without any drilling.   Brackets clip onto rails and slot fits a 2 X 4 or 2 X 2 on edge.  Aluminum slide rails are also available* Bunk Bracket for slide on bunks

* Users  can also install 2x4's flat side down across the bars
and just bolt them to the rails instead of using the T-Brackets




Post Base for Bolt Down are Standard

Post Bases are deleted when Caster Option is added

OPTIONAL CASTERS

Casters are industrial grade and are designed for heavy duty usage.  Allows easy movement of racks, even when loaded.  Works well for Retail Store Displays, Docks  or Home Garages.







Racks are weather resistant and can be used indoors or outdoors

PRICES



Sailboat Storage Racks
Also For Row Boats,  Pedal & Paddle Boats
All Sailboat Racks have unpadded rails
optional rail pads are available

MODEL PRICE SHIPPING

CC-B2A   Box - 2 - A* size Sailboats - Stationary  Equivalent to: 72000 & 20016

$   704.00 FREE Shipping (48 USA)

CC-B3A   Box - 3 - A* size Sailboats - Stationary
Equivalent to: 72001 & 20018

$ 1124.00 FREE Shipping (48 USA)
CC-B4A  Box - 4 - A* size Sailboats - Stationary
Equivalent to: 72002 & 20020
$  1302.00 FREE Shipping (48 USA)
CC-B2B   Box - 2 - B* size Sailboats - Stationary
Equivalent to: 72003 & 20016
$   704.00 FREE Shipping (48 USA)
CC-B3B   Box - 3 - B* size Sailboats - Stationary
Equivalent to: 720054 & 20018
$ 1124.00 FREE Shipping (48 USA)
CC-B4B   Box - 4 - B* size Sailboats - Stationary
Equivalent to: 72005 &  20020
$  1302.00 FREE Shipping (48 USA)
CC-B6O    BOX Rack For 6 Opti Sailboats - Stationary  Equivalent to: 72006
 3  Opti  Boats High x 2 Opti Boats Wide
CALL
Note for  CC-B6O   BOX Rack For 6 Opti Sailboats - this rack designed for use with Slide Bunks.  Bunks and Brackets are additional cost items.  Users may also  install their own slide bunks using locally obtained wood and hardware. CALL
Large Custom Rack Systems - Call
CC-RP2    Optional Rack Pads - Set of Two - 24"
Equivalent to:  78500  & 80030  Red Color Only
49.95 FREE Shipping (48 USA)
Only when ordered with rack

CASTER CONVERSION KITS


CC-BCAST   Caster Conversion Kit - BOX Racks
Equivalent to: 74004  & 29996
$  150.00 FREE Shipping (48 USA)
Only when ordered with rack



# Caster Conversion Kit for  BOX Racks may r equire some drilling by Customer to Install



*FREE Shipping on Caster Conversion Kits, Only When Ordered At Same Time With Storage Racks



* A size sailboats include - Laser, Sunfish, Opti or  up to 58" beam

* B size sailboats include - Laser 2, Vanguard 15, 420, up to 68" beam

These Racks can be Easily  Modified to Accommodate SUP Stand Up Paddleboards, Pedal Boats, Paddle Boats, and Row Boats
