Kayaks
Seitech Storage Racks
Outline Dimensions
Stationary, Wall and Roll a Round Storage Racks


Seitech Storage Racks are made of aluminum, engineered composite joints and stainless steel fasteners.  They are available in fixed, wall mount, and with rolling casters.  Ideal for storage or display units.  Racks ship UPS.

Arms on Single Tree Racks are 27" deep with  22" of vinyl padding on top of arms
Wall and Double Tree Arms are 36" deep with  31" of vinyl padding on top of arms

Kayak Rack Longitudinal dimensions (length between support bars)
are 66" for Wall and Single Tree
84" for Double Tree Models

disregard other dimension on drawings below

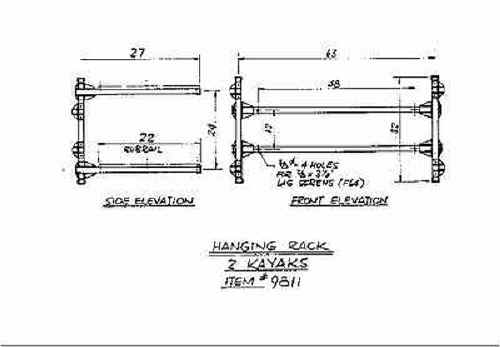

Seitech rack 2 canoes wall
Current Model Number 72508
Seitech Rack for  2 Kayaks or Canoes Wall Mount
Rack mounts with lag screws thru predrilled holes





Seitech Rack for 2 kayaks with casters
Current Model Number 72500
Seitech Kayak Rack for 2 Kayaks Stationary

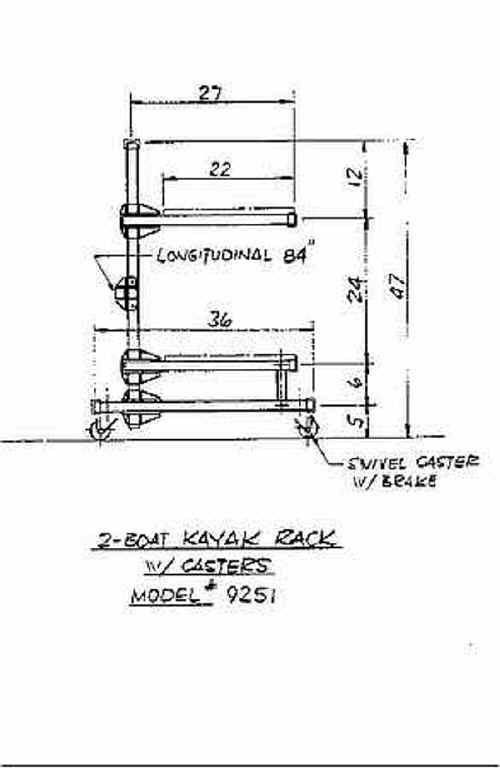

Seitech Rack for 2 kayaks with casters
Current Model Number 72500 with Optional Caster Kit
Seitech Kayak  Rack for 2 Kayaks on Rolling Casters
Full Wheel Casters are lockable

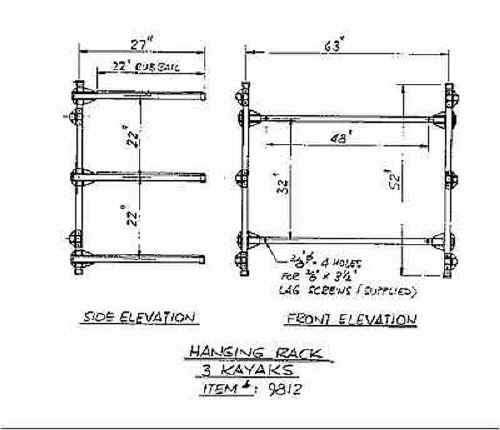

Seitech rack 3 canoe wall
Current Model Number 72509
Seitech Rack for  3 Kayaks or Canoes Wall Mount
Rack mounts with lag screws thru predrilled holes

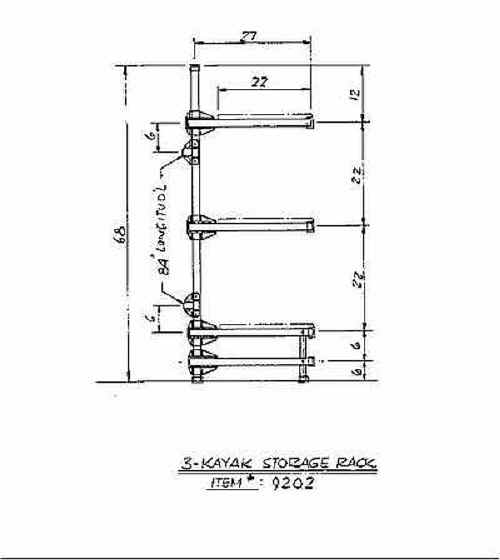

Seitech Rack for 3 kayaks
Current Model Number 72501
Seitech Kayak Rack for 3 Kayaks Stationary

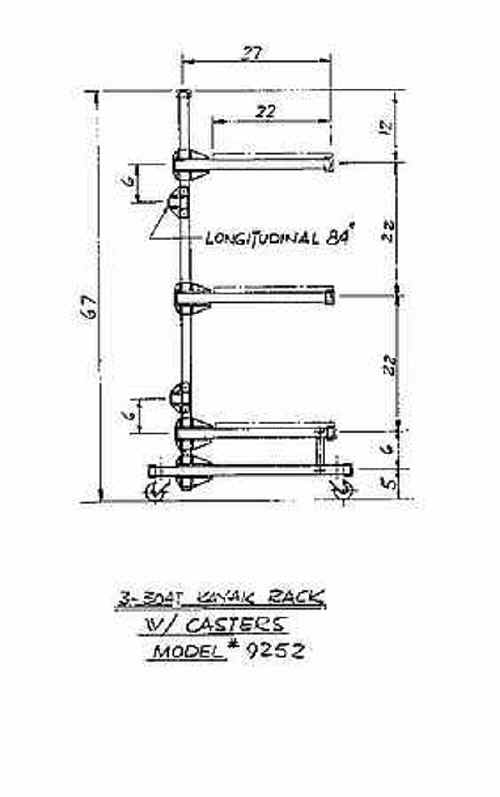

Seitech Rack for 3 kayaks casters
Current Model Number 72501 with Optional Caster Kit
Seitech Kayak Rack for 3 Kayaks with Rolling Casters
Full Wheel Casters are lockable





Seitech rack 4 canoe wall
Current Model Number 72510
Seitech Rack for  3 Kayaks or Canoes Wall Mount
Rack mounts with lag screws thru predrilled holes

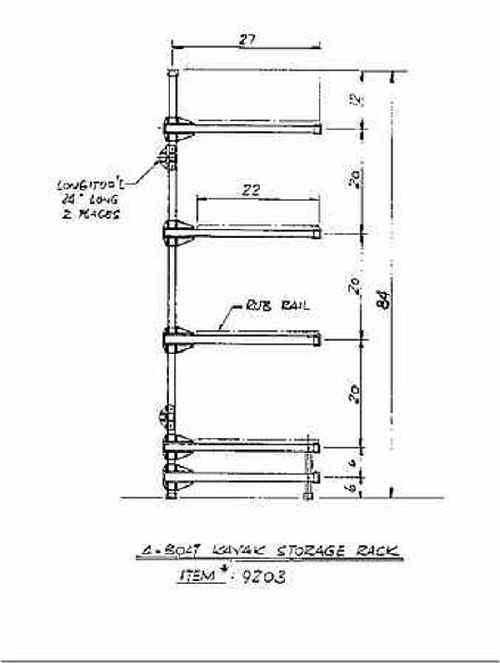

Seitech Rack for 4 kayaks
Current Model Number 72502
Seitech Kayak Rack for 4 Kayaks Stationary

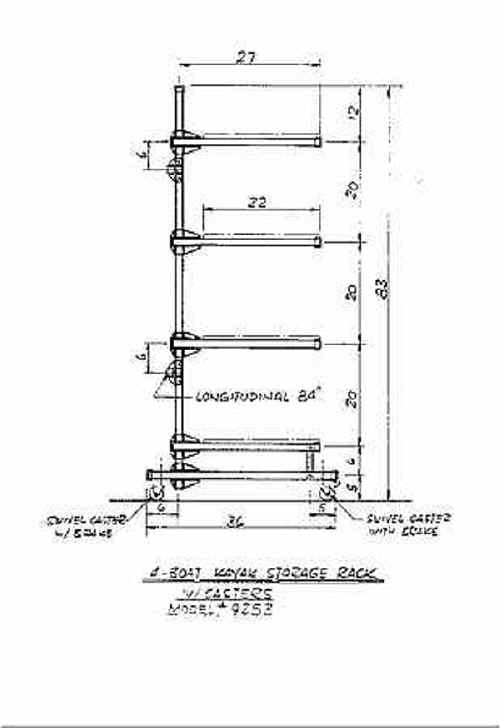

Seitech Rack for 4 kayks caster
Current Model Number 72502 with Optional Caster Kit
Seitech Kayak Rack for 4 Kayaks with Rolling Casters
Full Wheel Casters are lockable

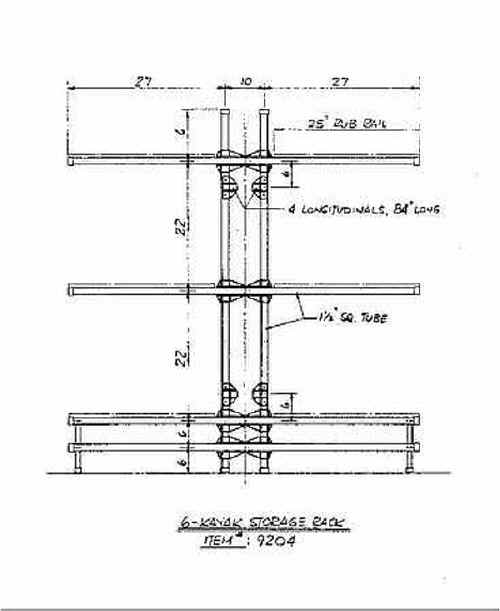

Seitech rack 6 canoes
Current Model Number 72506
Seitech Rack for 6 Kayaks or Canoes Stationary

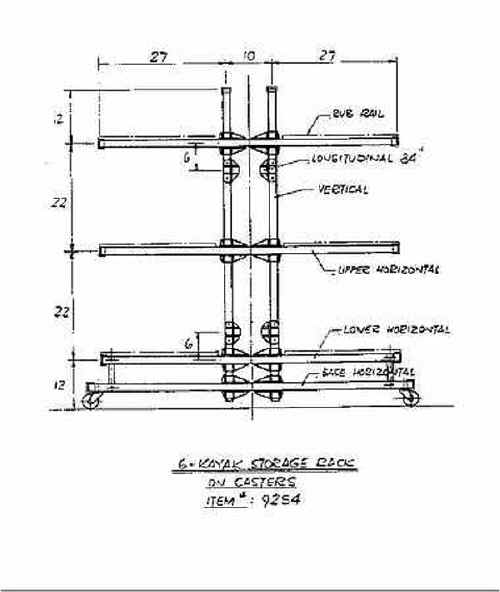

Seitech rack 6 canoe casters
Current Model Number 72506 with Optional Caster Kit
Seitech Rack for 6 Kayaks or Canoes on Rolling Casters
Full Wheel Casters are lockable

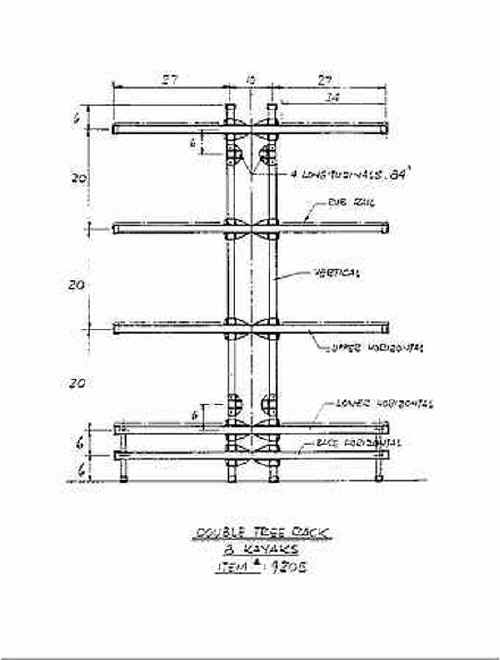

Seitech rack 8 canoes
Current Model Number 72507
Seitech Rack for 8 Kayaks or Canoes Stationary

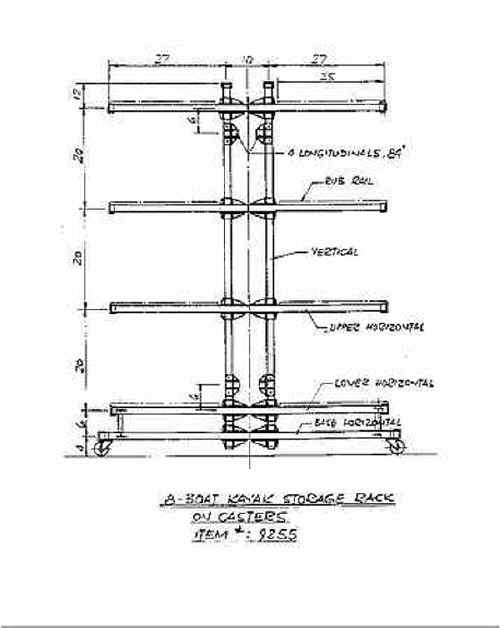

Seitech rack 8 canoe casters
Current Model Number 72507 with Optional Caster Kit
Seitech Rack for 8 Kayaks or Canoes on Rolling Casters
Full Wheel Casters are lockable
