Trailex Box Style
 Storage Racks
Outline Dimensions
Stationary and Roll a Round Storage Racks for  Sailboats,

 Row Boats, Pedal and Paddle Boats.



trailex logo

Trailex Ultra-Light Aluminum Racks and Trailer Kits come with a One Year Limited Warranty.  Almost 50% lighter than steel racks and they Never Rust





Architects and Engineers - We can provide you with High Resolution Drawings - Contact Us

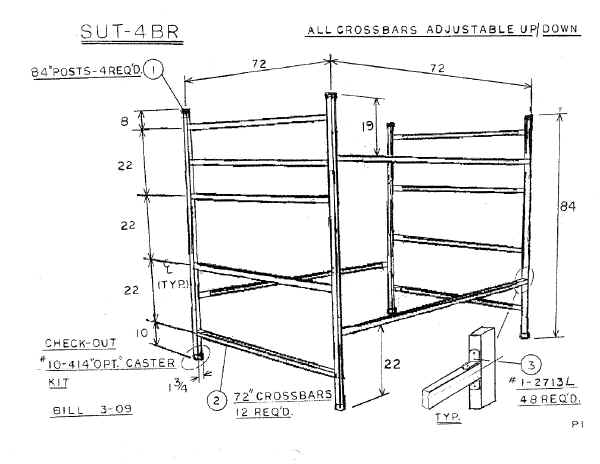

Trailex Box Rack Outline SUT-4BR
Trailex SUT-4BR Box style rack will hold Four (4)  Sailboats, Row Boats
 or  it can be adjusted for Three (3) Pedal Boats

Overall Height is 84",  Adding the Caster Kit increases Height to 92"







Trailex Rack Outline  SUT-4BRE Box Rack Extension

Trailex SUT-4BRE  Extension Module Box Style Rack  Allows you to "Daisy Chain" Racks.  This method reduces Cost and lets you configure Large  Boat Storage Rack Systems for Multiple Sailboats, Row Boats and Pedal Boats.  Fully Adjustable - You can mix and Match  different Boats  of various styles and sizes.

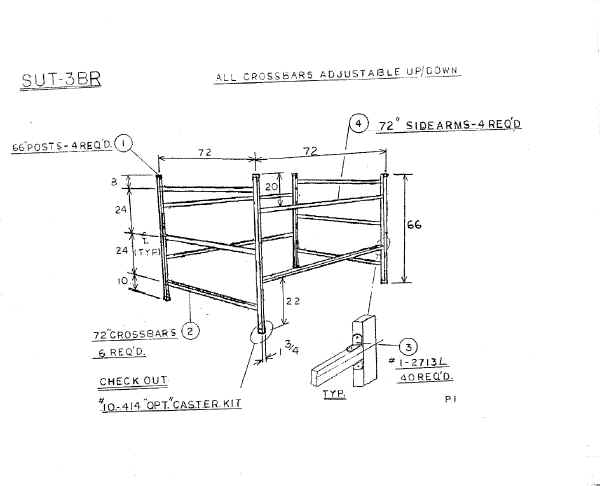

Trailex Rack Outline  SUT-3BR
Trailex SUT-3BR Box style rack will hold Three (3)  Sailboats, Rowboats
 or  it can be adjusted for two (2)  Paddle  Boats

Overall Height is 66",  Adding the Caster Kit increases Height to 74"





Trailex Rack Outline  SUT-3BRE Extension for Box racks

Trailex SUT-3BRE  Extension Module Box Style Rack  Allows you to "Daisy Chain" Racks.  This method reduces Cost and lets you configure Large  Boat Storage Rack Systems for Multiple Sail boats, Rowboats and Paddle  Boats.  Fully Adjustable - You can mix and Match  different Boats  of various styles and sizes.

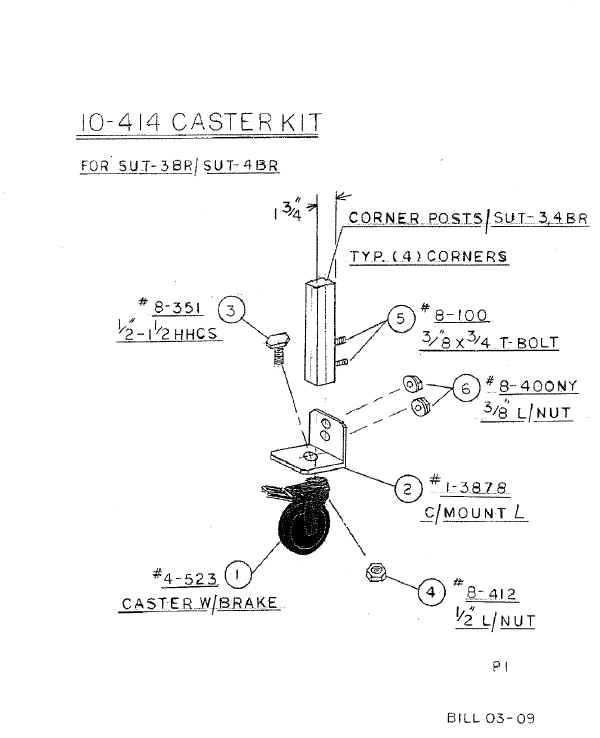

Trailex Rack Outline  CASTER KIT BOX RACK
Caster Kits Install on Box Style Racks without any Drilling.








Trailex Rack Anchor Brackets
Anchor Brackets Attach to the Box Style Racks without any Drilling.
 Use these Aluminum L Brackets to secure racks to floors, docks or concrete pads




AB-4 Bracket Attachment   T-Bolt Attachment

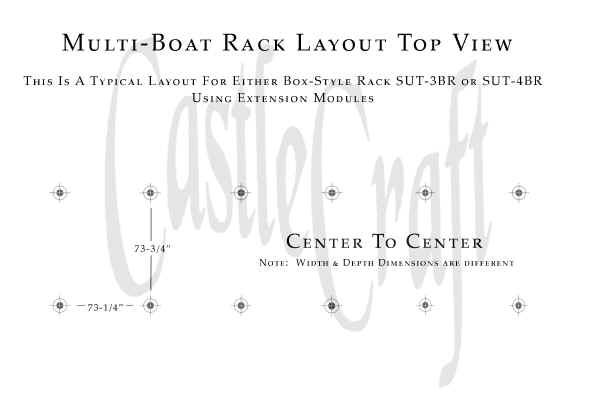

Trailex Box Rack Layout top view

Top View Center to Center Post  Layout for both the SUT-3BR and the SUT-4BR Box Style Racks.  Note that Width and Depth Dimensions are different.

(Outside to outside Rack dimensions are 74-1/2" Wide and 75-1/2" deep)





Trailex Rack Box Outline Multi Top-View





All Of The Trailex Racks Can Be Easily Resized.  Using A Simple Hacksaw, You Can Cut Down The Size Of Any Member, To Make The Rack Smaller.  The Unique T-Bolt Construction Allows You To Slide The Parts To Any Spacing Or Position.



Trailex T-bolt

Trailex T-Bolt with nut

  • Patented T-Bolt Construction

  • Fully Adjustable

  • Heads of bolts slide to any position.

  • Requires only one wrench to tighten

  • Lock nuts on all bolts

  • Strong & lightweight

Trailex Extrusion & T-Bolt
