Parts for  Snark Sunchaser Two Sailboat

To Order Snark Sailboats Parts Call 1-800-247-6275 or 1-517-265-9821 between the hours of 8 AM to 4 PM Eastern Time Monday thru Friday

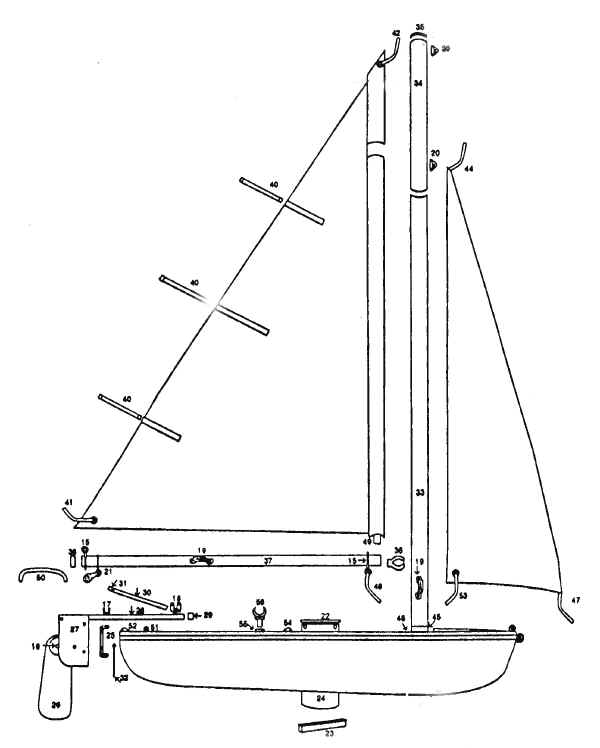

Sunchaser Two Diagram



PARTS LIST FOR SUNCHASER TWO SAILBOAT

KEY PART DESCRIPTION
39+43 40028MJ Main Sail & Jib Set Only
37 11530 Boom   110"
34 11520 Upper Mast ( no hardware) 104"
33 11510 Lower Mast ( no hardware) 144"  x 2-3/8"dia
35 28300 Mast Cap
38 14500 Boom Cap
20 P27600 Mast Fairlead Assembly (set of 2)
19 P15200 Mast Jam Cleat Assembly (set of 2)
21 P21000 Boom Pulley Assembly
P12700 Eyebolt assembly (set of 2)
36 31790 Boom Yoke
50 15000 #12 line 3/8"
41 16800 #4 line 1/4"
24 P11610 Daggerboard Assembly
23 23400 Daggerboard Plug
22 11700 Daggerboard Top Plate
21200 Hatch Cover (left or right)
26 11620 Rudder Blade
27 11400 Rudder Frame
25 P10300 Rudder Pivot Assembly
P20000 Rudder Transom Plate Assembly
P10400 Rudder Transom Pivot Assembly
28 P15700 Complete Tiller Handle Assembly
18 P17100 Tiller Pivot
P15100 Rudder Hinge Pin Assembly
51 P29400 Sterns Bullseye Fairlead Assembly
52 P40122 Sterns Large Clam Cleat Assembly
54 P63630 Gunwale Small Clam Cleat Assembly (set of 2)
56 30910 Oarlock Horns ( each)
55 30900 Oarlock Socket Assembly
45 P14300 Mast Ring assembly
P12500 Boweye (set of 2)
P40130 Rudder & Tiller Assembly
P89190 Sail Assembly Complete with Sail
