 Hitch Racks for Cars
 & Pickup Trucks



MADE IN THE USA
FROM AMERICAN MADE COMPONENTS
High Quality Aluminum and Stainless Steel



 FREE SHIPPING  *
*within the 48 USA





Aluminum and Stainless Steel - They Never Rust



Hitch Rack on Truck         Hitch Rack on Sedan

Hitch Rack on Truck

Hitch Rack on Car



HR-1 Hitch Rack   is 209.95 + FREE Shipping (48 USA)

Scroll Down the Page  for Details & Option's Pricing





All aluminum hitch rack will allow you to carry  up to two canoes or five kayaks by using it as the rear carrier.   Use an existing front rack, or add our universal suction cup rack or truck rack for the forward carrier.   The longer span can increase stability.  It fits into any existing 3/4" hole for accommodating a ball hitch.  Offset  option is available to allow you to still use your hitch to tow a trailer at the same time.   By installing a front hitch to a pickup, you can install the hitch rack as the forward carrier in instances where you need to carry a boat farther forward, such as with a 5th wheel on a pickup bed.

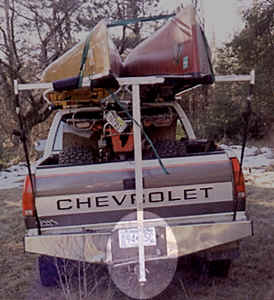

Hitch Rack on piockup rear           Hitch Rack on sedan rear
Hitch Rack can fit in either a standard bumper hitch or a receiver type hitch.  Hitch rack telescopes up to fit the largest pickup height or lower for cars.


The top horizontal bar is padded for 36".  Telescoping built in extensions extend the width of the top bar to 57" wide.  Rack extends up to 66" high, will fit all large size pickups, including Ford 350.

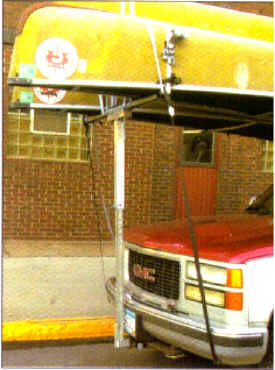

Front Hitch       Front Hitch with TT-1
Hitch Rack on front with TT-1 on rear



By installing a factory front bumper hitch, the Hitch Rack can be installed on the front of a vehicle.

  • For Very long boats

  • For Fifth Wheels

  • For Towing trailers

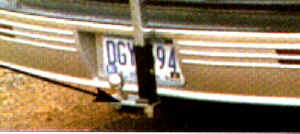

Offset option
Offset option lets you tow a trailer and use Hitch Rack

Hitch rack base    Hitch Rack Base bolts to ball shank hole in bumper or receiver bars 3/4" hole.  Order our option HB-1  for a 2" receiver or obtain a blank draw bar locally for quick mount in a receiver .







Truck Rack Load stops
Load Stops



Optional Load Stops  LS-4

LS-4 Load Stops come as a Set of 4.  Use them on the TT-2 Truck Rack, The NSC-2 Roof Rack, and the HR-2 Hitch Rack.  Prevents your boat from shifting from Side to Side.  Quickly attaches to most other cross bars.  Sturdy aluminum frame with Non-Marring Vinyl Block.  Slides to any position on Bar.

 Individual  Stop  is approximately 3" High x 4" Wide
Fits up to 2-3/4" Wide x 2-1/4"  High Square or Rectangular racks  and Fits up to 2-1/4" round bars.





KS-1 Kayak Saddles can be added to the HR-2 Rack

Click here for details

           Kayak Saddles



HR-2       1 Hitch Rack is 209.95 + FREE Shipping & Handling 48 USA



              Optional Extra Equipment

LS-4 Set Of 4 Load Stops   59.95
KS-1 Kayak Saddle Set for One Kayak 109.95
K-ST Set of Two 7' Straps for Kayak   12.00
C-ST Set of Two 15' Straps for Canoe   16.00
OFF-1 Offset (to use hitch rack and trailer ball together on same drawbar)     8.00
HB-1 2" x 2" Draw bar 8" long  blank   22.00

Hitch Rack includes set of stabilizing straps

Use your existing front rack or you can order a single Truck Rack or a single Suction Cup Rack.
