Medium Sailboat Trailer
For Vanguard 15 Sailboat  , International Club 420 Sailboat  and Similar Style Sailboats



Trailex Ultra-Light Aluminum Trailers come with  a One Year Limited Warranty.  Almost 50% lighter than steel trailers and they Never Rust



FREE SHIPPING ON TRAILEX SUT SERIES TRAILERS*
*within the 48 USA

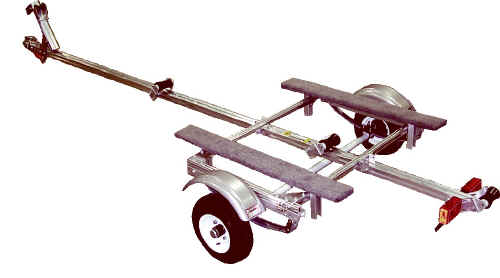

Trailex Model SUT-500-S Trailer

Trailex model SUT-500S trailer
Wide 6" bunks provide maximum hull support



The SUT-500-S Trailer will fit Sailboats up to 500 lbs

All Aluminum, All Bolted Construction, All Adjustable

Model SUT-500  has epoxy coated leaf springs, giving it a carrying capacity of up to 500 lbs.  This trailer can be shipped via UPS, and is easily assembled using only simple tools.  Since the SUT-500 Trailer is made of aluminum, it is maintenance-free in addition to being strong and lightweight.



SUT-500-S Trailer  is 1,239.00 + FREE Shipping (48 USA)

Scroll Down the Page  for Details , Available Options Pricing  and Action Videos









SPECIAL OFFER
(offer only valid when ordered with trailer)
Sorry, Offer Does Not Apply to Prior Sales + Limited Time Offer

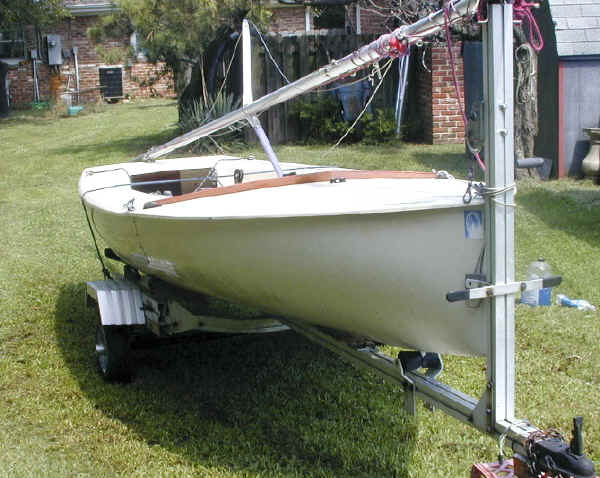

Trailex SUT-500-S Trailer with Jet 14 Sailboat
Trailex SUT-500-S Trailer with Jet  Sailboat  with optional Winch and Front Mast Stand





Trailex SUT-500-S trailer shown with Wooden Boat
Trailex SUT-500-S Trailer Fits A Wide Variety of Sailboats and Sailing Dories
(shown with optional spare tire and spare tire carrier)



Bunks are Fully Adjustable
Bunks can be Adjusted in Height and Angle, or Spaced Close or Wide



Support Bunks can be Flat

  Angle Bunks to fit Hull Contour







Optional FCA-1 Custom Front Cradle Assembly Provides  Additional Bow Support Adjustment
NOTE: Special Use Only-Not Required for Most Boats



Cradles Adjust To Fit  Many Special Boats Such As the
Force 5, MXRay and Others







Trailex SUT-500-S Trailer
The Trailex SUT-500-S Trailer Is Fully Adjustable For All Types Of Sailboats
This Photo Shows The Bunks Adjusted To The Far Rear Of The Trailer







Trailex SUT-500-S Trailer
The Trailex SUT-500-S Trailer Is A Perfect Fit For Medium  Sailboats and Dories
This Photo Shows The Bunks Adjusted For Center Hull Support







SUT-500-S

1,239.00

+ FREE SHIPPING
in 48 USA

SUT-500-S18

1,599.00

+ FREE SHIPPING
in 48 USA










SUT-500-S
Specifications

     Standard Equipment

Capacity:
Weight:
Length:
Width:
Tires:
Coupler:
Electrical:

500 lbs
130 lbs
15'-4"
72"
16" High
1-7/8"
Flat 4 prong

  • Submersible Taillights

  • Safety Chain

  • 48" Padded Bunks

  • Adjustable Bow Stop

  • Lift Handle with Vinyl Caps

  • High Impact Plastic Fenders

  • High Speed Demountable Galvanized Wheels & Tires

  • Adjustable Undercarriage

  • Three -  6" Rollers

  • Epoxy Coated Springs





SUT-500-S18
Specifications

     Standard Equipment

Capacity:
Weight:
Length:
Width:
Tires:
Coupler:
Electrical:

500 lbs
150 lbs
18'-3"
72"
16" High
1-7/8"
Flat 4 prong

  • Submersible Taillights

  • Safety Chain

  • 48" Padded Bunks (2)

  • Front Padded Cradle

  • Adjustable Bow Stop

  • Lift Handle with Vinyl Caps

  • High Impact Plastic Fenders

  • High Speed Demountable Galvanized Wheels & Tires

  • Adjustable Undercarriage

  • Two -  6" Rollers

  • Epoxy Coated Springs









              Optional Extra Equipment

SPGAL

Spare Tire     59.95
STC Spare Tire Carrier    59.95
WNC Winch with Strap & Hook  119.95
DMMC4 Deck Mount Mast Carrier (ea)    44.95
AM-10 Aft Mast 10" Carrier-Gudgeon Mount    59.95
AM-16 Aft Mast 16" Carrier-Gudgeon Mount    59.95
SMSK Mast Carrier Set  AM-10+DMMC4    99.95
FMS-48 Front Mast Stand on Trailer - 48" High  149.95
FMS-60 Front Mast Stand on Trailer - 60" High  189.95
FCA-1 Custom Front Cradle Assembly  149.95









  Bearing Protection System
  Included on Every Trailer

Sure Lube low pressure bearing lubrication system.  Protects bearings and prevents any seal damage.
Easy to use. A Zerk Fitting is located under the axle's end cap. Removing the end cap allows you to use a
small grease gun to lubricate the bearings.
The new grease pushes the old grease out.





SUT-500-S18 Special Features

Trailex SUT-500-S18 Trailer for long Sailboats and Boats
The Trailex SUT-500-S18 differs from the SUT-500-S in the following two Specifications
Trailex SUT-500-S18 Trailer for long Sailboats and Boats



Trailex SUT-500-S18 Front Cradle

Trailex SUT-500-S18 is 18'-3" long, for larger boats up to 21' and 500 lbs



Trailex SUT-500-S18 Adds a Front Padded Cradle in place of one of the Front Rollers








Application Information

 Model SUT-500-S will carry up to an 17'  Sailboat
Such as the Vanguard 15 Sailboat, International Club 420 Sailboat,
 or similar sailboats up to 500 lbs.
 Model SUT-500-S18 will carry up to an 20'-6"  long Sailboat

Add optional Front Mast Stand .  Order DMMC4 or AM-16 for rear mast carrier support depending on type of boat.


Click Here for Frequently Asked Questions

Trailex Trailer Packaged for UPS Shipment

Typical Trailex Trailer Packaged for FedEx Shipment



Trailex T-bolt

Trailex T-Bolt with nut

  • Patented T-Bolt Construction

  • Fully Adjustable

  • Heads of bolts slide to any position.

  • Requires only one wrench to tighten

  • Lock nuts on all bolts

  • Strong & lightweight

Trailex Extrusion & T-Bolt









See Action Videos
Trailex  Trailer Owners  love to post Videos.  See the Latest Action Videos

CLICK BELOW





Trailex SUT-250M-2 Trailer Video







Trailex SUT-250M-2 Trailer at Paddle Sports Show














SUT-500-S
Assembly Instructions
Escape Sailboat Trailer Zuma Sailboat Trailer
