Small Boat Trailer

For small boats, dories, sailboats and skiffs up to 250 lbs

Trailex Ultra-Light Aluminum Trailers come with  a One Year Limited Warranty.  Almost 50% lighter than steel trailers and they Never Rust



FREE SHIPPING ON TRAILEX SUT SERIES TRAILERS*
*within the 48 USA



Trailex Model SUT-250-S Trailer

Trailex model SUT-250-S Trailer
Wide 6" bunks provide maximum hull support and adjust to fit the contour of your hull

The SUT-250-S Trailer will fit Boats up to 250lbs

All Aluminum, All Bolted Construction, All Adjustable

Model SUT-250-S has epoxy coated leaf springs, giving it a carrying capacity of up to 250 lbs.  This trailer can be shipped via UPS, and is easily assembled using only simple tools.  Since the SUT-250-S Trailer is made of aluminum, it is maintenance-free in addition to being strong and lightweight.



SUT-250-S Trailer  is 1,133.00 + FREE Shipping (48 USA)

Scroll Down the Page  for Details , Available Options Pricing  and Action Videos







SPECIAL OFFER
(offer only valid when ordered with trailer)
Sorry, Offer Does Not Apply to Prior Sales + Limited Time Offer









Trailex SUT-250-S Trailer With a 12' Labrie  Dory
Trailex SUT-250-S Trailer With a 12' Labrie Dory





SUT-250-S trailer shown with Bass Boat
Trailex SUT-250-S carries Small Jon Boats, Small Bass Boats (such as Bass Hound, Bass Tender etc )







Optional FCA-1 Custom Front Cradle Assembly Provides  Additional Bow Support Adjustment
NOTE: Special Use Only-Not Required for Most Boats



Cradles Adjust To Fit  Many Special Boats Such As the
Force 5, MXRay and Others

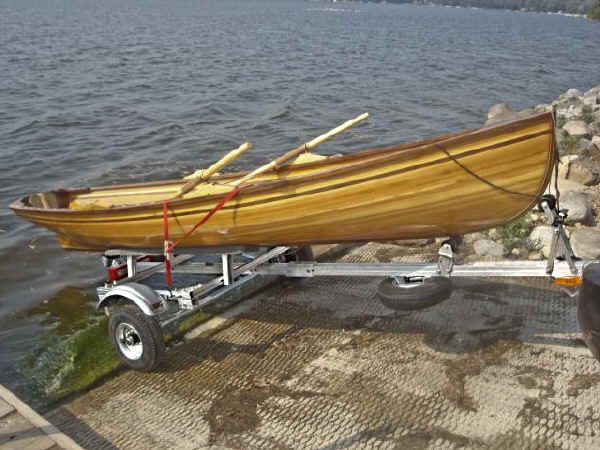

Trailex SUT-250-S Trailer with A Rowing Dory
Trailex SUT-250-S Trailer with A Rowing Dory





SUT-250-S

1,133.00

+ FREE SHIPPING
in 48 USA








Specifications

     Standard Equipment

Capacity:
Weight:
Length:
Width:
Tires:
Coupler:
Electrical:

250 lbs
120 lbs
12'-7"
72"
16" High
1-7/8"
Flat 4 prong

  • Submersible Taillights

  • Safety Chain

  • 48" Padded Bunks

  • Adjustable Bow Stop

  • High Impact Plastic Fenders

  • Lift Handle with Vinyl Caps

  • High Speed Demountable Galvanized Wheels & Tires

  • Adjustable Undercarriage

  • Two - 6" Rollers

  • Epoxy Coated Springs





Optional Extra Equipment


SPGAL Spare Tire     59.95
STC Spare Tire Carrier    59.95
WNC Winch with Strap & Hook  119.95
FCA-1 Custom Front Cradle Assembly  149.95







  Bearing Protection System
  Included on Every Trailer

Sure Lube low pressure bearing lubrication system.  Protects bearings and prevents any seal damage.
Easy to use. A Zerk Fitting is located under the axle's end cap. Removing the end cap allows you to use a
small grease gun to lubricate the bearings.
The new grease pushes the old grease out.







Application Information

The Standard  Model SUT-250-S will carry up to a  15' long Boat or Sailboat up to a capacity of 250 lbs.

For Longer Boats see Model SUT-500-S

Click Here for Frequently Asked Questions

Trailex Trailer Packaged for UPS Shipment

Typical Trailex Trailer Packaged for FedEx Shipment


Trailex T-bolt

Trailex T-Bolt with nut

  • Patented T-Bolt Construction

  • Fully Adjustable

  • Heads of bolts slide to any position.

  • Requires only one wrench to tighten

  • Lock nuts on all bolts

  • Strong & lightweight

Trailex Extrusion & T-Bolt





See Action Videos
Trailex  Trailer Owners  love to post Videos.  See the Latest Action Videos

CLICK BELOW





Trailex SUT-250M-2 Trailer Video







Trailex SUT-250M-2 Trailer at Paddle Sports Show


















SUT-250-S
Assembly Instructions
Escape Sailboat Trailer Zuma Sailboat Trailer
More
Trailers

Trailex Trailer Brochure
Trailex Trailers
Brochure
