Catamaran Sailboat Trailer
  General Purpose Trailers for Larger Hobie , Nacra, Prindle,
Vanguard, Dart, A-Class, and similar large Catamarans
Fits Most Catamarans 20' or less and 8'-6" Beam or less

Trailex Ultra-Light Aluminum Trailers come with  a One Year Limited Warranty.  Almost 50% lighter than steel trailers and they Never Rust





Trailex Model TX-418-NPR Trailer

Trailex TX-418 Trailer for Catamarans -  Hobie Cat , Inter Nacra, Prindle,

Trailex Catamaran Trailer  Shown With Hobie Getaway Catamaran





Trailex TX-418 Trailer for Catamarans -  Hobie Cat , Inter Nacra, Prindle,

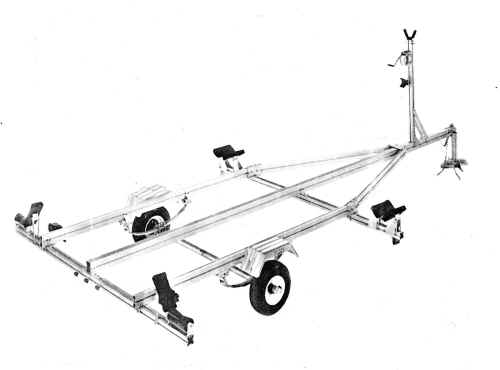

TX-418-NPR  Trailer shown with Standard Rear Guide Pads and Support Rollers.
This General purpose Trailer carries many different types of catamarans.
  See listings below.  Different support options are available.





  TX-418-NPR Trailer  is 1899.00 + Shipping

Scroll Down the Page  for Details & Options Pricing








Trailex TX-418 Trailer for Catamarans -  Hobie Cat , Inter Nacra, Prindle,

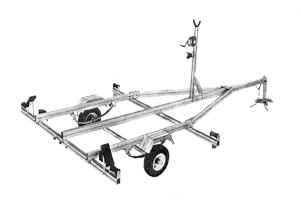

Typical Trailex Catamaran Trailer







Trailex TX-418 Trailer for Catamarans -  Hobie Cat , Inter Nacra, Prindle,

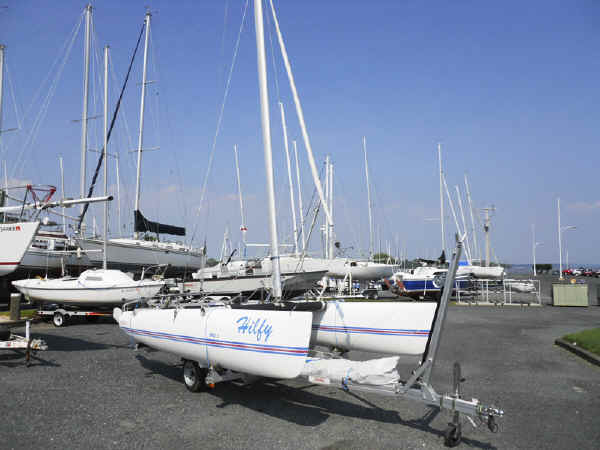

Trailex Model TX-418 with an Aquarius Super Cat 20 Catamaran






All Aluminum, All Bolted Construction, All Adjustable

Model TX-418-NPR General Purpose  Catamaran Trailer has epoxy coated leaf springs, giving them a carrying capacity of up to 500 lbs.    Since these Trailers are made of aluminum, they are maintenance-free in addition to being strong and lightweight.  These trailers require common carrier or motor freight shipment, and are easily assembled using only simple tools.  Assembled trailers are available to some locations.

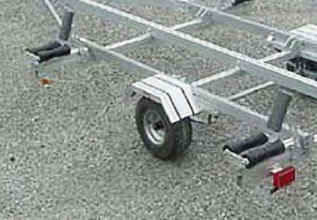

Optional Upgrade to  Double 8" Rollers in Pivoting Cages

Trailex TX-418 Trailer for Catamarans -  Hobie Cat , Inter Nacra, Prindle, , catamarn

Trailex TX-418 Trailer for Catamarans -  Hobie Cat , Inter Nacra, Prindle,

Four Alignment Guides

  Two  8" Rollers in a Pivoting Cage
 DR-8 Upgrade includes 4 Total Roller Cages and 4 Total Alignment Guides


Optional  Upgrade Replaces the  standard fore & aft  rollers & aft guides with  Four  Dual  8" Pivoting Roller Cages with guides. Four Double 8" cages and alignment guides total





Specifications*  General Purpose  Catamaran Trailer

    Typical Standard Equipment*

Model

Capacity:
Weight:
Length:
Width:
Tires:
Coupler:
Electrical:

TX-418-NPR

500 lbs
290 lbs*
19'-3"*
8'-6" Crossbars
4:80 X 12"

2"
Flat 4 prong





  • Submersible Taillights

  • Safety Chain

  • Two Padded Rear  Alignment  Guides

  •  Four  6" Rolls

  • Winch

  • 60" Front mast stand

  • Hot Dip Galvanized Axle

  • High Speed Demountable Galvanized Wheels & Tires

  • Adjustable Undercarriage

  • Epoxy Coated Springs



RICES**

TX-418-NPR

  1899.00

   + shipping & handling

TX-418-A   2269.00     + shipping & handling



                   Optional Extra Equipment

STC Spare Tire Carrier   59.95
JACK-HD Adjustable Front Parking Jack 119.95
12SPGAL 4.80 X 12" Spare Tire - Galvanized   99.95
AMS-NPR Aft Mast Stand  129.95
DR-8 Upgrade Replaces the  standard fore & aft  rollers & aft guides with  Four  Dual  8" Pivoting Roller Cages with guides. Four Double 8" cages and alignment guides total 489.00**
CH-Kit Four  sets of Adapter Hardware allows customer supplied Cradles to be mounted. This Kit deletes the fore & aft standard  rollers and the two standard guide pads No Cost   exchange
**
BMK-CAT Box Mounting Hardware to attach customer supplied storage box 49.00
  ** Valid only with Trailer Purchase

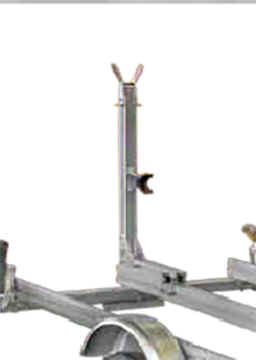

Optional Aft Mast Stand

TX-418 Trailer for Catamarans - Hobie Cat , Inter, Nacra,  Prindle,  catamaran        TX-418 Trailer for Catamarans - Hobie Cat , Inter Nacra, Prindle, , catamarn




Top Yoke is padded for Boom and Spars, Padded Rear Stop is adjustable for Boat, Quick Release to remove when launching


AMS-NPR  Optional Rear Mast Stand quickly removes from trailer allowing unobstructed launching.  Adjustable Padded Rear Stop protect the rear of your boat





Optional Cradle Mounting Kit

TX-418 Trailer for Catamarans - Hobie Cat , Inter, Nacra,  Prindle,  catamaran        TX-418 Trailer for Catamarans - Hobie Cat , Inter, Nacra,  Prindle,  catamaran
      CH-Kit  Adapter Set   Typical Customer Supplied Cradles



  Cradle not included - Shown  as example
Four  sets of Adapter Hardware allows customer supplied Cradles to be mounted.  This Kit deletes the fore & aft standard  rollers and the two  standard guide pads


NOTE - Cradles are not included.  Customer needs to provide own cradles.  Obtain from boat manufacturer or Universal supplier such as one shown from  sailboxes.com







Optional Box Mounting Kit

TX-418 Trailer for Catamarans - Hobie Cat , Inter, Nacra,  Prindle,  catamaran        TX-418 Trailer for Catamarans - Hobie Cat , Inter, Nacra,  Prindle,  catamaran
                     BMK-CAT   Typical Customer Supplied  Box



  Box  not included - Shown as example
Box Mounting Hardware to attach customer supplied storage box


NOTE - Box is  not included.  Customer needs to provide own box.  Obtain from boat manufacturer or Universal supplier such as one shown from  sailboxes.com









  Bearing Protection System
  Included on Every Trailer

Sure Lube low pressure bearing lubrication system.  Protects bearings and prevents any seal damage.
Easy to use. A Zerk Fitting is located under the axle's end cap. Removing the end cap allows you to use a
small grease gun to lubricate the bearings.
The new grease pushes the old grease out.





Trailex TX-418 Trailer for Catamarans -  Hobie Cat , Inter Nacra, Prindle,

Rear View Of Trailex  Trailer Carrying A Hobie Getaway Catamaran. Some boat manufacturers offer special cradles - these are not available on this trailer. Hardware options for adapting customer obtained  cradles are available.





Trailex TX-418 Trailer for Catamarans -  Hobie Cat , Inter Nacra, Prindle,

Double Stack Versions are available - Contact us





Application Information

General Purpose Catamaran Trailer  Model TX-418-NPRwill fit most boats
up to 20'-0" overall Length and with a 8'-6" or smaller Beam

A-Class Cat TX-418-A
Dart 18 TX-418-NPR
Hobie Cat 14 TX-418-NPR
Hobie Cat 16 TX-418-NPR
Hobie Cat 17 TX-418-NPR
Hobie Cat 18 TX-418-NPR
Hobie Getaway TX-418-NPR
Hobie Tiger CALL #
Inter 17 TX-418-NPR
Inter 18 TX-418-NPR
Inter 20 TX-418-NPR
Nacra 5.2 TX-418-NPR
Nacra 5.5 TX-418-NPR
Nacra 5.8 TX-418-NPR
Nacra 6.0 TX-418-NPR
Nacra 500 TX-418-NPR
Nacra 570 TX-418-NPR
Prindle 16 TX-418-NPR
Prindle 18 TX-418-NPR
Prindle 19 TX-418-NPR
Vanguard Sweet 16 TX-418-NPR

# Requires additional options - Contact us for pricing

All models can be provided with optional adapters for users who wish to mount the boat
 manufacturer's cradles, instead of the standard rolls and guides.

Dual Boat Trailers for carrying two catamarans are available - Contact Us

Other Models available for smaller Catamarans such as Hobie Cat Wave, American Sail Aqua Cat, Escape Playcat, Seacycle, Waterbike and similar Catamaran sailboats.  CLICK HERE FOR DETAILS





Trailex TX-418 Trailer for Catamarans -  Hobie Cat , Inter Nacra, Prindle,

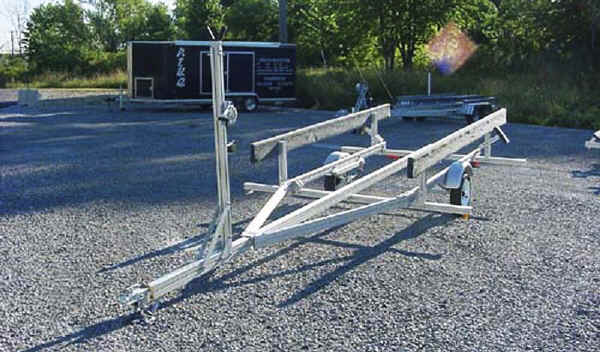

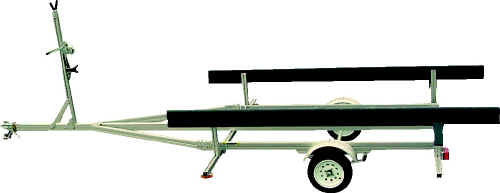

TX-418-A designed specifically for A Class Catamarans





Trailex Trailer for common carrier shipment

These trailers can be shipped via common carrier i.e. motor freight.  The frames are assembled and then wrapped.  Running gear, superstructure, and lighting are boxed.



Optionally, these trailers may be delivered to your location fully assembled,
 depending on your area.  Please contact us for shipping quotes.



Trailex T-bolt

Trailex T-Bolt with nut

  • Patented T-Bolt Construction

  • Fully Adjustable

  • Heads of bolts slide to any position.

  • Requires only one wrench to tighten

  • Lock nuts on all bolts

  • Strong & lightweight

Trailex Extrusion & T-Bolt



Click Here for Frequently Asked Questions










TX-419 Assembly Instructions
