Meyers Aluminum Fishing Boats

Flat Bottom Fishing Boats

Meyers Fisherman 12 Jon Boat
Meyers Fisherman 12 Jon Boat



Scroll Down the Page  for Details & Option's Pricing



Meyers, in business since 1937, produces an extremely durable and attractive line of fishing boats. Using their experience in manufacturing aircraft, Meyers has designed their fleet for rough service. Meyers boat hulls are stretch-formed over a die to  shape the hull halves. These halves are then welded together, forming virtually one piece of metal between you and the water. Oarlocks, drain plug, and bow castings are standard. They feature extruded chines, gunwales, splash rails and keels.  Although all the seams are welded, there are some rivets in the hull - why?  Click here for the answer.  The exterior and interior hulls are painted olive drab.


Meyers Fisher 10 Jon Boat Meyers Fisherman Series Jon Boats are 56" wide at the top gunwales, and 38" wide at the bottom.  This gives great stability, yet they will fit inside a full size pickup truck bed.  3 seats are standard.  18" high gunwales at center.

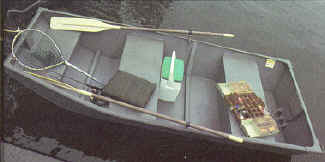

Meyers Fisherman 10 shown

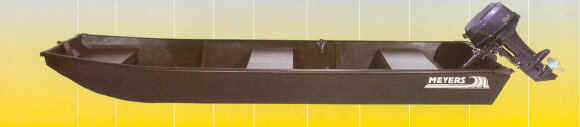

Meyers Fisherman 14 Jon Boat
Meyers Fisherman 14 Jon Boat
motor not included

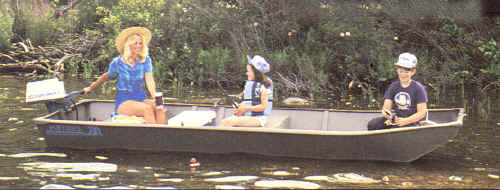

Meyers Fisherman 14 Jon boat
Meyers Fisherman 14 Jon Boat
motor not included

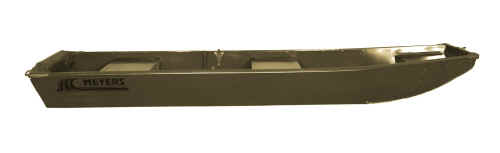

Meyers Fisherman 12 Jon  Boat

Meyers Fisherman 12 Jon  Boat - Side View
Gunwales are 18" high in the center

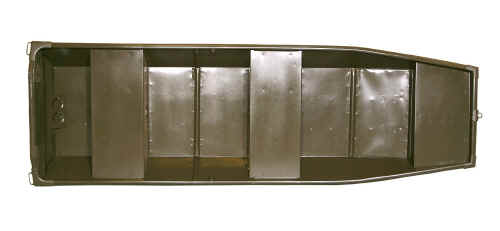

Meyers Fisherman 12 Jon  Boat
Meyers Fisherman 12 Jon  Boat  - Top View
The  56" wide beam gives it superior stability

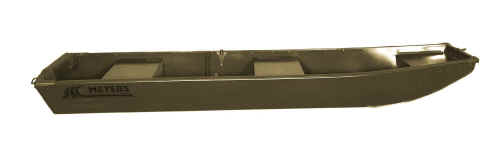

Meyers Fisherman 12 Jon  Boat
Meyers Fisherman 12 Jon  Boat  - Angle View







Meyers Explorer 12 Jon Boat

Meyers Explorer 12 Jon Boat





Meyers Explorer 12 Jon Boat Meyers Explorer Series Jon Boats are 46" wide at the top gunwales, and 31" wide at the bottom.  They have plenty of room,  yet they will fit inside a small size pickup truck bed.  Explorer models are lighter and narrower than the Fisherman models. 3 seats are standard.  14.5" high gunwales at center.

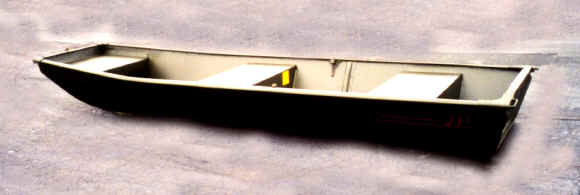

Explorer 12 shown

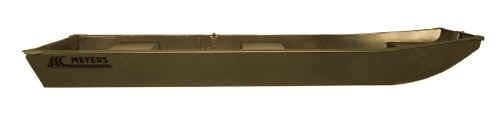

Meyers Explorer 12 Jon Boat

Meyers Explorer 12 Jon  Boat - Side View
Gunwales are 14.5" high in the center

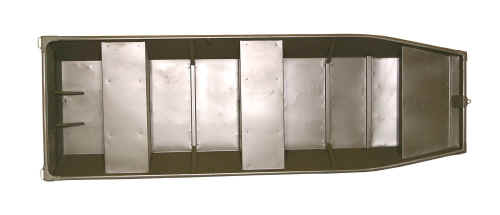

Meyers Explorer 12 Jon Boat
Meyers Explorer 12 Jon  Boat  - Top View
The narrower 46" beam lets it fit in small pickup truck beds

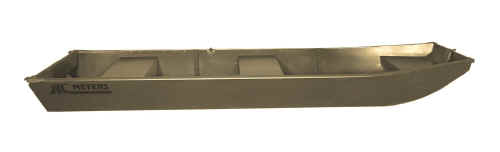

Meyers Explorer 12 Jon Boat
Meyers Explorer 12 Jon  Boat  - Angle View







Meyers Aluminum
Jon Boats

MODEL

LENGTH

BEAM
TOP

DEPTH
CENTER
TRANSOM WIDTH/HEIGHT

WEIGHT

HULL

CAPACITY

HP

FISHERMAN 10

10'-0"

56"

18" 56" x 15"  116 LB

.050

350 LB

5

FISHERMAN 12

12'-0"

56"

18" 56" x 15"

133 LB

.050

500 LB

10

FISHERMAN 14 14'-0" 56" 18" 56" x 15"  144 LB .050 630 LB 10
EXPLORER 10 10-0" 46" 14.5" 46" x 14.5" 80 LB .040 325 LB 3
EXPLORER 12 12'-0" 46" 14.5" 46 x 14.5" 90 LB .040 390 LB 3





PRICES

Fisherman 10 1042.00       + Shipping & Handling
Fisherman 12 1141.00       + Shipping & Handling
Fisherman 14 1236.00       + Shipping & Handling
Explorer 10 801.00       + Shipping & Handling
Explorer 12 887.00       + Shipping & Handling



OPTIONS

BR-2 Oars, aluminum/plastic (set) 99.95
CL-2 Clamp-on oarlocks for  BR-2 19.95
LV-3 Class III  Life Vest 49.95

Oars are aluminum shaft with plastic blade.     CL-2 clamp-on oarlocks are required for BR-2.





Class III Life Vest



Optional class III Life Vest   Optional  Oar set






SAVE MONEY


ASK FOR  THE FREE BONUS PACKAGE
Save  $ 114.90


Ask for the BONUS PACKAGE and you will receive:

  • Br-2 Oars (Set)

  • CL-2 Oarlocks (Set)

*  This special offer is available only when ordering as a package with  a Meyers Aluminum Boat as part of the original order.

RETAIL VALUE OF PACKAGE 114.90

LIMITED TIME OFFER





Applications:

Fisherman Series give you maximum stability and greater capacity

Explorer series give you light weight and ease of transport
